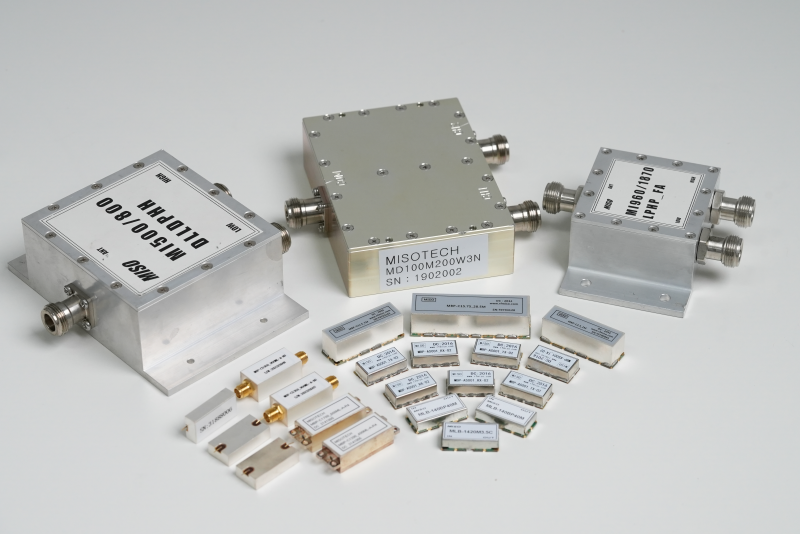

LC Lumped
| Applications | ·Cellular base station transceivers ·Satellite transceivers ·GPS and car navigation equipment ·Land mobile radios ·CATV ·Modems ·Wireless LANs ·Military |
| Features | ·Small size, low profile ·Leaded, surface mount, PC mount and connectorized ·Hermetically sealed package available ·Wide range of transfer functions ·30 kHz t0 20GHz ·Compliant to MIL % RoHs Specs |
| Typical Performance Characteristics |
·Temperature Range: -55 to 85℃ ·Temperature Stability: (±5 ppm /℃) |
| No | C.F. | Model | Type | Impedance | B/W | I/L | R/L | Attenuation | Dimention | Data |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 12MHz | MLB-12BP8M | LC BPF | 50Ohm | 8MHz | 3.0dB | 15dB | 35dB@0.3MHz 35dB@1560 , 1645-2500MHz | 25.4x12.7x6.7mm |  |
| 2 | 30MHz | MLB-30-BP10M | LC BPF | 50Ohm | 10MHz | 3.5dB | 15dB | 45dB@DC-20MHz 60dB@80-300MHz | 44.5x15x7mm | |
| 3 | 40MHz | MLB-40BP08M | LC BPF | 50Ohm | 8MHz | 3.0dB | 15dB | 45dB@DC-25MHz 45dB@60MHz | 47x15x7mm | |
| 4 | 59MHz | MBP-C59_58ML-A | LC BPF | 50Ohm | 58MHz | 2.0dB | 13dB | 30dBc min @ DC~25MHz 30dBc min @ 108MHz | 30x10x6mm | |
| 5 | 75MHz | MBP-C75_3MS-A-R0 | LC BPF | 50Ohm | 3MHz | 7.0dB | 15dB | 40dB min @ 69MHz 40dB min @ 81MHz | 35x12.5x10mm | |
| 6 | 80MHz | MLB-80BP22M | LC BPF | 50Ohm | 22MHz | 3.0dB | 15dB | 50dB@45MHz 30dB@115MHz | 25.4x12.7x6.7mm | |
| 7 | 100MHz | MLB-100BP5M | LC BPF | 50Ohm | 5MHz | 3.0dB | 15dB | 40dB@60MHz 40dB@140MHz | 25.4x12.7x6.7mm | |
| 8 | 100MHz | MBP-C100_60ML-A-R0 | LC BPF | 50Ohm | 60MHz | 1.5dB | 15dB | 50dB min @ 35MHz 50dB min @ 170MHz | 25x12x8mm | |
| 9 | 140MHz | MLB-140BP5M | LC BPF | 50Ohm | 5MHz | 3.5dB | 15dB | 40dB@100MHz 40dB@180MHz | 25.4x12.7x6.7mm | |
| 10 | 140MHz | MLB-140BP10M | LC BPF | 50Ohm | 10MHz | 3.0dB | 15dB | 40dB@100MHz 40dB@180MHz | 25.4x12.7x6.7mm | |
| 11 | 141MHz | MBP-C141_66ML-A | LC BPF | 50Ohm | 66MHz | 2.5dB | 13dB | 30dBc min @ DC~88MHz 30dBc min @ 190MHz | 30x10x6mm | |
| 12 | 187.5MHz | MLB-187.5BP100M | LC BPF | 50Ohm | 100MHz | 3.0dB | 15dB | 60dB@1-112.5MHz 60dB@262.5-4500MHz | 80x25x15mm | |
| 13 | 190MHz | MBP-C190_120ML-A-R0 | LC BPF | 50Ohm | 120MHz | 1.2dB | 15dB | 50dB min @ 60MHz 50dB min @ 320MHz | 25x12x8mm | |
| 14 | 230MHz | MBP-C230_10ML-A-R0 | LC BPF | 50Ohm | 10MHz | 3.5dB | 15dB | 30dBc min @ 200MHz 10dBc min @ 250MHz | 25.4x12.7x6.7mm | |
| 15 | 240MHz | MLB-240-BP03M | LC BPF | 50Ohm | 3MHz | 3.0dB | 15dB | 60dB@DC-180MHz 60dB@300MHz | 47x15x7mm | |
| 16 | 270MHz | MLB-270-BP10MA | LC BPF | 50Ohm | 10MHz | 5.0dB | 15dB | 60dB@DC-210MHz 40dB@240MHz 60dB@300MHz | 44.5x15x7mm | |
| 17 | 270MHz | MLB-270BP140M | LC BPF | 50Ohm | 140MHz | 2.0dB | 16dB | 25dB@DC-170MHz 10dB@1625MHz 10dB@2000MHz 50dB@3000MHz | 30x10x5mm | |
| 18 | 310MHz | MBP-C310_140ML-A-R0 | LC BPF | 50Ohm | 140MHz | 1.5dB | 15dB | 50dB min @ 140MHz 50dB min @ 480MHz | 25x12x8mm | |
| 19 | 368.5MHz | MBP-C368.5_287MN-A-R0 | LC BPF | 50Ohm | 287MHz | 1.6dB | 15dB | 12dB min @ 200MHz 12dB min @ 537~2000MHz | 145x52x29mm | |
| 20 | 350MHz | MLB-350BP100MA | LC BPF | 50Ohm | 100MHz | 2.0dB | 15dB | 20dB@240MHz 20dB@480MHz 60dB@1500MHz | 25.4x9x6.7mm | |
| 21 | 380MHz | MBP-C380_280ML-A-R0 | LC BPF | 50Ohm | 280MHz | 1.5dB | 14dB | 50dB min @ 50~150MHz 50dB min @ 700~3000MHz | 25x10x8mm | |
| 22 | 386MHz | MBP-C386.5_287ML-A | LC BPF | 50Ohm | 287MHz | 2.0dB | 13dB | 30dBc min @ DC~190MHz 30dBc min @ 600MHz | 30x10x6mm | |
| 23 | 450MHz | MBP-C450_140ML-A-R0 | LC BPF | 50Ohm | 450MHz | 1.5dB | 15dB | 50dB min @ 250MHz 50dB min @ 650MHz | |
|
| 24 | 475MHz | MLB-475BP270M | LC BPF | 50Ohm | 270MHz | 2.0dB | 16dB | 25dB@DC-170MHz 10dB@1625MHz 10dB@2000MHz 50dB@3000MHz | 30x10x5mm | |
| 25 | 485MHz | MBP-450-520_70M_120W | LC BPF | 50Ohm | 70MHz | 0.9dB | 15dB | 10dBc Min @ 400MHz 10dBc Min @ 570MHz 40dBc Min @ 350MHz 30dBc Min @ 620MHz 70dBc Min @ 1000-2500MHz | 75.0 x 25.0 x 15.0 mm | |
| 26 | 485MHz | MBP-450-520_70M_160W | LC BPF | 50Ohm | 70MHz | 1.0dB | 15dB | 10dBc Min @ 400MHz 10dBc Min @ 570MHz 40dBc Min @ 350MHz 30dBc Min @ 620MHz 70dBc Min @ 1000~2500MHz 50dBc Min @ 2500~6000MHz | 121.0 x 39.0 x 20.0 mm | |
| 27 | 650MHz | MBP-C650_300MS-A-R1 | LC BPF | 50Ohm | 300MHz | 3.0dB | 15dB | 30dB min @ DC~400MHz 30dB min @ 900~2000MHz | 18x10x6mm | |
| 28 | 700MHz | MBP-C700_400ML-A-R0 | LC BPF | 50Ohm | 400MHz | 1.5dB | 15dB | 50dB min @ 50~300MHz 50dB min @ 1200~3000MHz | 25x10x8mm | |
| 29 | 880MHz | MLB-880BP540M | LC BPF | 50Ohm | 540MHz | 2.0dB | 16dB | 25dB@DC-575MHz 10dB@1625MHz 10dB@2000MHz 50dB@3000MHz | 30x10x5mm | |
| 30 | 900MHz | MBP-C900_400MS-A-R1 | LC BPF | 50Ohm | 900MHz | 3.0dB | 15dB | 30dB min @ DC~550MHz 30dB min @ 1300~2000MHz | 18x10x6mm | |
| 31 | 1000MHz | MBP-C1000_500ML-A-R0 | LC BPF | 50Ohm | 500MHz | 1.5dB | 15dB | 60dB min @ 400MHz 60dB min @ 1600~2600MHz | 15x10x5mm | |
| 32 | 1125MHz | MBP-C1125_1250ML-A-R0 | LC BPF | 50Ohm | 1250MHz | 1.5dB | 15dB | 45dB min @ 250MHz 30dB min @ 2000~3500MHz | 15x10x5mm | |
| 33 | 1150MHz | MBP-C1150_500ML-A-R0 | LC BPF | 50Ohm | 500MHz | 1.5dB | 14dB | 50dB min @ 50~650MHz 50dB min @ 1650~3000MHz | 25x10x8mm | |
| 34 | 1300MHz | MBP-C1300_600MS-A-R1 | LC BPF | 50Ohm | 600MHz | 3.0dB | 15dB | 30dB min @ DC~800MHz 30dB min @ 1800~3000MHz | 18x10x6mm | |
| 35 | 1350MHz | MBP-C1350_500ML-A-R1 | LC BPF | 50Ohm | 500MHz | 1.8dB | 15dB | 15dBc min @ DC~700MHz 15dBc min @ 2100~3000MHz | 8x8x6mm | |
| 36 | 1600MHz | MBP-C1600_400ML-A-R0 | LC BPF | 50Ohm | 400MHz | 1.8dB | 14dB | 50dB min @ 50~1200MHz 50dB min @ 2000~3000MHz | 25x10x8mm | |
| 37 | 1750MHz | MBP-C1750_500ML-A-R1 | LC BPF | 50Ohm | 500MHz | 3.0dB | 15dB | 30dB min @ DC~1300MHz 30dB min @ 2100~3000MHz | 18x10x6mm | |
| 38 | 1800MHz | MBP-C1800_800ML-A-R0 | LC BPF | 50Ohm | 800MHz | 1.8dB | 1.8dB | 40dB min @ 750~1000MHz 40dB min @ 2600~4000MHz | 15x10x5mm | |
| 39 | 1800MHz | MBP-C1800_1000ML-A-R1 | LC BPF | 50Ohm | 1000MHz | 2.0dB | 14dB | 30dB min @ 1000MHz 30dB min @ 2600~4000MHz | 20x10x6mm | |
| 40 | 1800MHz | MBP-C1800_2000ML-A-R0 | LC BPF | 50Ohm | 2000MHz | 2.0dB | 12dB | 30dB min @ 500MHz 30dB min @ 3100MHz | 32x11x7.2mm | |
| 41 | 2000MHz | MBP-C2000_500ML-A-R0 | LC BPF | 50Ohm | 500MHz | 1.8dB | 15dB | 45dB min @ 750~1250MHz 60dB min @ 3000MHz | 15x10x5mm | |
| 42 | 2175MHz | MBP-C2175_750ML-A-R0 | LC BPF | 50Ohm | 750MHz | 1.5dB | 14dB | 50dB min @ 50~1400MHz 50dB min @ 2900~3000MHz | 25x10x8mm | |
| 43 | 3000MHz | MBP-C3000_1000ML-A-R0 | LC BPF | 50Ohm | 1000MHz | 1.7dB | 14dB | 50dB min @ 50~1700MHz 50dB min @ 4400~6000MHz | 35x12x9mm | |
| 44 | 3000MHz | MBP-C3000_1500ML-A-R0 | LC BPF | 50Ohm | 1500MHz | 2.0dB | 15dB | 25dB min @ 1750MHz 20dB min @ 4250~6000MHz | 26.6x10x6mm | |
| 45 | 4000MHz | MBP-C4000_500ML-A-R0 | LC BPF | 50Ohm | 500MHz | 3.0dB | 15dB | 60dB min @ 750~1250MHz 55dB min @ 1875~2125MHz | 26.6x10x6mm | |
| 46 | 4100MHz | MBP-C4100_1200ML-A-R0 | LC BPF | 50Ohm | 1200MHz | 1.7dB | 14dB | 50dB min @ 50~2500MHz 50dB min @ 5700~7000MHz | 35x12x9mm | |
| 47 | 5350MHz | MBP-C5350_1300ML-A-R0 | LC BPF | 50Ohm | 1300MHz | 1.7dB | 14dB | 50dB min @ 50~3500MHz 50dB min @ 7200~8000MHz | 35x12x9mm | |
| 48 | 1.75MHz | MBP-C1.75_0.5M | MINIPACK BPF | 50Ohm | 0.5MHz | 1.5dB | 10dB | 20dB@1.35MHz 30dB@2.2MHz | 38.1 x 12.7 x 11.0 mm | |
| 49 | 2.5MHz | MBP-C2.5_1M | MINIPACK BPF | 50Ohm | 1MHz | 3.0dB | 10dB | 19dB@fc±800KHz | 38.1 x 12.7 x 11.8 mm | |
| 50 | 3.5MHz | MBP-C3.25_3.5M | MINIPACK BPF | 50Ohm | 3.5MHz | 2.5dB | 10dB | 25dB Min@1.3MHz 20dB Min@5.5MHz 45dB Min@6MHz | 55.0 x 17.0 x 12.7 mm | |
| 51 | 4MHz | MBP-C4_2M | MINIPACK BPF | 50Ohm | 2MHz | 3.0dB | 10dB | 17dB@fc±800KHz | 38.1 x 12.7 x 12.7 mm | |
| 52 | 7MHz | MBP-C7_4M | MINIPACK BPF | 50Ohm | 4MHz | 3.0dB | 10dB | 20dB@fc±3MHz | 38.1 x 12.7 x 12.7 mm | |
| 53 | 12.5MHz | MBP-C12.5_7M | MINIPACK BPF | 50Ohm | 7MHz | 3.0dB | 10dB | 20dB@fc±5.2MHz | 38.1 x 12.7 x 12.7 mm | |
| 54 | 15.75MHz | MBP-C15.75_28.5M | MINIPACK BPF | 50Ohm | 28.5MHz | 1.0dB | 10dB | 25dB@1.35MHz 35dB@33MHz | 55.0 x 17.0 x 12.7 mm | |
| 55 | 23MHz | MBP-C23_14M | MINIPACK BPF | 50Ohm | 14MHz | 3.0dB | 10dB | 19dB@fc±10MHz | 38.1 x 12.7 x 12.7 mm | |
| 56 | 76.8MHz | MBP-C76.8_40M | MINIPACK BPF | 50Ohm | 40MHz | 2.0dB | 10dB | 30B@fc±30MHz | 55.0 x 17.0 x 12.7 mm | |
| 57 | 495MHz | MLB-495BP50B | MINIPACK BPF | 50Ohm | 50MHz | 1.8dB | 10dB | 60dB min @ DC~240MHz 50dB min @ 240~340MHz | 37x10x6.5mm | |
| 58 | 600MHz | MBP-C600_200ML-A | MINIPACK BPF | 50Ohm | 200MHz | 2.0dB | 15dB | 55dBc min @ DC~300MHz 55dBc min @ 900~3000MHz | 30x12.5x10mm | |
| 59 | 850MHz | MBP-C850_300ML-A | MINIPACK BPF | 50Ohm | 300MHz | 2.0dB | 15dB | 55dBc min @ DC~500MHz 55dBc min @ 1200~3000MHz | 30x12.5x10mm | |
| 60 | 1090MHz | MBP-C1090_53ML-A-R0 | MINIPACK BPF | 50Ohm | 53MHz | 3.5dB | 14dB | 47dB min @ DC~980MHz | 33.02x19.68x7.62mm | |
| 61 | 1200MHz | MBP-C1200_400ML-A | MINIPACK BPF | 50Ohm | 400MHz | 2.0dB | 15dB | 55dBc min @ DC~700MHz 55dBc min @ 1700~3000MHz | 30x12.5x10mm | |
| 62 | 1700MHz | MBP-C1700_600ML-A-R4 | MINIPACK BPF | 50Ohm | 600MHz | 2.0dB | 15dB | 55dBc min @ DC~1100MHz 55dBc min @ 2300~4000MHz | 38x12.5x10mm | |
| 63 | 3000MHz | MBP-C3000_50ML-A-R0 | MINIPACK BPF | 50Ohm | 50MHz | 3.0dB | 15dB | 50dBc min @ DC~900MHz 70dBc min @ 1000MHz | 19.05x12.7x10.16mm | |
| 64 | 3525MHz | MBP-C3525_2.45GL-A-R8 | MINIPACK BPF | 50Ohm | 2450MHz | 2.5dB | 10dB | 20dB min @ 2000MHz 50dB min @ 6000MHz | 30x10x8mm | |
| 65 | 5375MHz | MBP-C5375_2.25GL-A-R3 | MINIPACK BPF | 50Ohm | 2250MHz | 2.5dB | 10dB | 20dB min @ 3000MHz 50dB min @ 8000MHz | 30x10x8mm | |
| 66 | 5250MHz | MHP-C5250_5.5GL-A-R0 | LC HPF | 50Ohm | 5500MHz | 2.0dB | 12dB | 20dB min @ 2000MHz | 20x10x9mm | |
| 67 | 200MHz | MLL400-MD-HA | LC LPF | 50Ohm | 400MHz | 1.0dB | 15dB | 35dB@480MHz | 65x38x25mm | |
| 68 | 250MHz | MLP-C195_30MN-A-R0 | LC LPF | 50Ohm | 30MHz | 0.3dB | 16dB | 50dB min @ 2nd & 3rd Harmonics | 100x35x29mm | |
| 69 | 250MHz | MLP-C125_250ML-A-R0 | LC LPF | 50Ohm | 250MHz | 0.8dB | 14dB | 50dB min @ 400~3000MHz | 25x10x8mm | |
| 70 | 257.5MHz | MLB-512-LP192-MA-MA | LC LPF | 50Ohm | 515MHz | 2.0dB | 15dB | 10dB@640MHz 40dB@960MHz | 13x12x6.5mm | |
| 71 | 270MHz | MLP-C135_270MN-A-R0 | LC LPF | 50Ohm | 270MHz | 1.0dB | 14dB | 60dB min @ 400MHz | 79.5x30x29mm | |
| 72 | 512MHz | MLB-512-LP192-MD | LC LPF | 50Ohm | 192MHz | 2.0dB | 15dB | 25dB min @ 640MHz 45dB min @ 960MHz | 25.4x12.7x6.7mm | |
| 73 | 690MHz | MLB-1380M3.5C | LC LPF | 50Ohm | 1380MHz | 3.5dB | 15dB | 40dB@1500MHz | 16x11x5mm | |
| 74 | 665MHz | MLB-672BP72M-A | LC LPF | 50Ohm | 70MHz | 0.6dB | 10dB | 60dB Min. @ DC ~ 400MHz 50dB Min. @ 400 ~ 500MHz 25dB Min. @ 500 ~ 570MHz 25dB Min. @ 760 ~ 830MHz 45dB Min. @ 830 ~ 930MHz 60dB Min. @ 930 ~ 5300MHz 40dB Min. @ 5300 ~ 8500MHz | 37.0 x 10.0 x 6.5 mm | |
| 75 | 1350MHz | MI1350_BL700MD-A | LC LPF | 50Ohm | 700MHz | 2.5dB | 15dB | 40 dB min. @ 3000MHz | 47.0 x 15.0 x 7.0 mm | |
| 76 | 4750MHz | MLP-C2375_4.75GL-A-R1 | LC LPF | 50Ohm | 4750MHz | 2.0dB | 12dB | 50dB min @ 6000MHz | 22x11x9mm | |
| 77 | 6500MHz | MLP-C3250_6.5GLB-R0 | LC LPF | 50Ohm | 6500MHz | 2.0dB | 12dB | 50dB min @ 8000MHz | 20x10x6mm | |
| 78 | CH+A14:H191-137MHz CH2-312.5MHz | MD100M200W3N | LC DIPLEXER | 50Ohm | CH1-74MHz CH2-175MHz | 0.8dB | 15dB | CH 1 : 30dB Min. @ 225 ~ 400MHz CH 2 : 30dB Min.@ 100 ~174MHz | 110.0 x 80.0 x 29.0 mm | |
| 79 | CH1-137MHz CH2-368.5MHz | MDI-C137-C368.5_74M-287M-A-R0 | LC DIPLEXER | 50Ohm | CH1-74MHz CH2-287MHz | 0.5dB | 15dB | CH 1 : 30dB Min. @ 225 ~ 512MHz CH 2 : 30dBMin.@ 100 ~174MHz | 150x80x29mm | |
| 80 | 271MHz | MCO-30-512M_482MN-A | LC SMART ANTENNA | 50Ohm | 482MHz | 3.6dB | 15dB | 20dB@30~88MHz / 225~400MHz | 189.0 x 110.0 x 60.0 mm | |
